Wind turbine
long term approved and updated to todays state of the technology

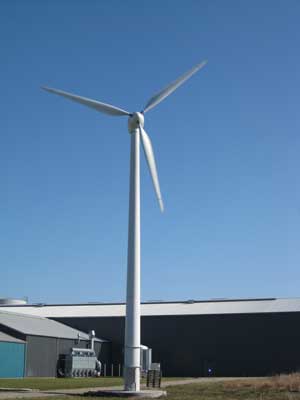

This 25kW wind turbine, optional 20kW version for low wind sites, is a development upgrade of a wind turbine, which is successfully in operation since 20 years. The developer and manufacturer has adapted the quality standards from the industries for big wind turbines and off-shore oil- and gas-fields, for which he designs and manufacturers constructions and equipments.

The wind turbines are designed and optimized according to the European norm IEC 61400-2 wind class IIIA.

Main features
  • Simple, proven and solid technology
  • Rotor diameter 14m, swept area 154m²
  • Two generators: small light generator for low wind speed, big generator for wind speed above 6m/s. The result is high output already at low wind speed.
  • Asynchron-generators from a leading German manufacturer
  • Low rotation speed 38 and 50 rpm Low noise level, survey report available
  • On-grid connection: 3-phase, 400V, direct without inverter
  • Gear box from Scandinavien manufacturer, applied in wind turbines since more than 20 years without problem
  • Function separation: main shaft mounted in two bearing cases, separated from generator and gear box.
    Result: longer lifetime
  • Elastic clutch
  • Low maintenance
  • High availability and safety


poles:
Hot galvanized and painted, tiltable by hydraulic cylinders.
Hub heights: 18m or 22m


Control:
Equipped with a PLC with Modem. Remote control via Ethernet or mobile connection, to be provided by customer.

Warranty:
Two years full warranty and additional three years only on parts.

Manufactured in West-Europe

Please send your enquiry.
